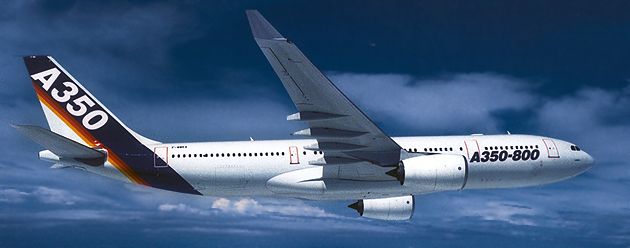

Airbus A350
The Airbus A350 (Airbus response to the Boeing 787) is based on the A330, but with substantial improvements to boost range. It offers a maximum of operational commonality with the current A330/A340 line - including Common Type Rating with the A330.
New technologies used in the Airbus A350 are taken from other Airbus programs, mainly the A380. Airbus proven expertise in the development and application of composites and innovative new materials will be used to incorporate a high percentage of lightweight structural materials, such as Carbon Fiber Reinforced Plastic (CFRP) and aluminum-lithium alloys. For example, the A350 wing will be largely manufactured using CFRP. Furthermore, the Airbus A350 wing will deliver exceptional low and high-speed efficiency thanks to cutting-edge design and manufacturing techniques and the integration of ‘droop nose’ technology from the A380.
The Airbus A350 will further enhance Airbus’ reputation for providing the most comfortable long-range cabins in the sky, featuring solid-state lighting technology to enable maximum customization and passenger comfort, and full compatibility with the latest generation In-Flight Entertainment (IFE) systems. Cabin services will be controlled through the unique Airbus Cabin Intercommunication Data System (CIDS). Both versions of the aircraft may be fitted with spacious crew rest facilities for up to two pilots and eight cabin crew, facilities which have already proved successful on A340-500/-600 aircraft currently in service.
Airbus A350 time-line:
October 2004 - further information filtering through indicated that Airbus is planning two A350 variants, based on the fuselage lengths of the A330-200 (250 seats) and the A330-300 (295 seats).
December 10, 2004 - Airbus has received approval from its shareholders, EADS and BAE Systems to begin making firm commercial offers to launch customers for two new members of its wide-body Family.
October 6, 2005 - Following approval by its shareholders, EADS and BAE Systems, Airbus has formally launched the new passenger long-range A350 aircraft, for which it has already received 140 firm order commitments from nine world-renowned customers.
| Developing nation: | Europe. |
| Manufacturer/designer: | EADS - Airbus Industries. |
| Production line: | Toulouse - Blagnac, France. |
| Type aircraft: | Long-range airliner. |
| First flight: |
mid 2008. |
| First delivery: | 2010. |
| Airbus A350-800 | |
| Cockpit crew: | two pilots. |
| Passengers three class: |
245. |
| Cabin length: | 45,5 m. |
| Cabin diameter: | 5,3 m. |
| Cargo volume: | 114,7 m³. |
| LD3 Containers in belly: | 26. |
| Standard 2.24m x 3.17m pallets: |
8 + 2 LD3's. |
| Wing span: | 61,1 m. |
| Wing area: | 362 m². |
| Wing sweep: | 30 degrees. |
| Fuselage length: | 58,8 m. |
| Fuselage diameter: | 5,64 m. |
| Height: | 17,4 m. |
| Engines: |
- two General Electric GEnx 72A1 turbofans rated 311 kN. - two Rolls-Royce Trent 1711 is expected to be offered later. |
| Weight: |
- Max. zero-fuel weight: 170.000 Kg. - Fuel: 139.100 liter. - Max. payload: 35.700 Kg. |
| Max. take off weight: | 245.000 Kg. |
| Max. landing weight: | 182.000 Kg. |
| Max. speed: | Mach 0.86. |
| Range: |
- max. range 16.300 km. |
| Airbus A350-900* | |
| Passengers three class: | 300. |
| Cabin length: | 52 m. |
| Cargo volume: | 147,2 m³. |
| LD3 Containers in belly: | 34. |
| Standard 2.24m x 3.17m pallets: |
11. |
| Fuselage length: | 65,2 m. |
| Weight: |
- Max. zero-fuel weight: 180.500 Kg. - Fuel: 139.100 liter. - Max. payload: 44.900 Kg. |
| Max. take off weight: | 245.000 Kg. |
| Max. landing weight: | 192.500 Kg. |
| Max. speed: | Mach 0.86. |
| Range: |
- max. range 13.890 km. |
* Generally similar to the Airbus A350-800 except in the following particulars.
Airbus A350 production:
In December 2004, the market for aircraft in the 250-300 seat category was estimated by Airbus at some 3,100 new aircraft over the next 20 years, of which the company expected to get at least 50 per cent.
|
Airbus A350 firm orders: | |
| Qatar Airways. |
60 - A350. |
| US Airways. | 20 - A350. |
| Alafco. | 12 - A350. |
| ILFC | 12 - A350. |
| Air Europa. | 10 - A350. |
| GECAS. | 10 - A350. |
| TAP Air Portugal | 10 - A350. |
| Finnair | 9 - A35-900 |
| TAM. (Taxi Aereo Marilia Airline) | 10- A350-900 |
| Kingfisher Airlines. | 5 - A350. |
| CIT. | 5 - A350. |
| Eurofly | 3 - A350. |
| Unannounced. | 10 - A350. |
